Tutorial Cara Menyambungkan 2 Router 1 switch 2 printer 1 Server 16 Pc Cisco Pcket Tracer

Admin

Petunjuk :

1. periksalah dengan teliti dokumen soal

2. periksalah peralatan bahan yang di butuhkan

3. gunakan peralatan utama dan peralatan kelselamatan kerja yang telah di selsaikan

DAFTAR IP ADDRESS

 jika anda ingin melihat/downloads bisa klik disini

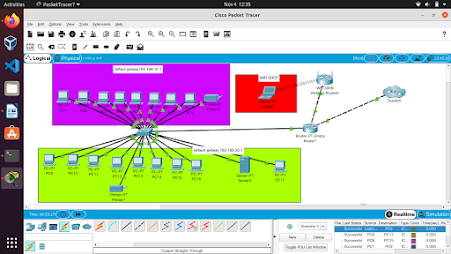

Gambar topologi

topologi

Topologi

- Router-PT-Empty 2 buah

- Switch 2950-24 1 buah

- WRT300N 1 buah

- PC 16 buah

- Laptop 1 buah

- Printer 2 buah

- server 1 buah

penyambungan kabel

klik Router0 physical matikan router terlebih dahulu jika sudah
    tarik PT-Router-NM-1CFE (Fas-Ethernet) ke port ujung bagian kanan
    tarik PT-Router-NM-1CGE (Gigabit) ke port di sampingPort CFE
    lalu hidupkan router tersebut

Klik Router1  Physical matikan router terlebih dahulu jika sudah
    tarik PT-Router-NM-1CFE (Fas-Ethernet) ke port ujung bagian kanan
    tarik PT-Router-NM-1CGE (Gigabit) ke port di samping port CFE
    tarik PT-Router-NM-1CFE (Fas-Ethernet) ke port di samping port CGE
    lalu hidupkan router tersebut

sambungkan  Router0 dengan Router1 mengunakan kabel crossover,
Router0 sebagai Gigabit-Ethernet1/0
Router1 sebagai Gigabit-Ethernet1/0

sambungkan switch0 dengan router1 mengunakan kabel straight,
Router1 sebagai Fas-Ethernet0/0
Switch0 sebagai Fas-Ethernet0/24

sambungkan WRT300N dengan router1 mengunakan kabel crossover,
wrt300n sebagai internet
router1 sebagai Fas-Ethernet0/2

seterusnya sesuai gambar ip address

konfigurasi

konfiigurasi Router0

Router>en

Router#conf t

Enter configuration commands, one per line. End with CNTL/Z.

Router(config)#interface GigabitEthernet1/0

Router(config-if)#ip add 172.10.32.2 255.255.255.252

Router(config-if)#no sh


%LINK-5-CHANGED: Interface GigabitEthernet1/0, changed state to up


Router(config-if)#ex

Router(config)#router rip

Router(config-router)#network 172.10.32.0

Router(config-router)#network 192.168.10.0

Router(config-router)#network 192.168.20.0

Router(config-router)#network 192.168.40.0

Router(config-router)#ex

Router(config)#ex

kemudian silang lalu klik tombol shift + U



Konfigurasi Router1

Router>en

Router#conf t

Enter configuration commands, one per line. End with CNTL/Z.

Router(config)#int Gig1/0

Router(config-if)#ip add 172.10.32.1 255.255.255.252

Router(config-if)#no sh


Router(config-if)#

%LINK-5-CHANGED: Interface GigabitEthernet1/0, changed state to up


%LINEPROTO-5-UPDOWN: Line protocol on Interface GigabitEthernet1/0, changed state to up


Router(config-if)#router rip

Router(config-router)#network 172.10.32.0

Router(config-router)#network 192.168.10.0

Router(config-router)#network 192.168.20.0

Router(config-router)#network 192.168.40.0

Router(config-router)#ex

Router(config)#int fa0/0

Router(config-if)#no sh


Router(config-if)#

%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up


%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up


Router(config-if)#int fa0/0.10

Router(config-subif)#

%LINK-5-CHANGED: Interface FastEthernet0/0.10, changed state to up


%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0.10, changed state to up


Router(config-subif)#encapsulation dot1Q 10

Router(config-subif)#ip add 192.168.10.1 255.255.255.0

Router(config-subif)#ex

Router(config)#int fa0/0.20

%LINK-5-CHANGED: Interface FastEthernet0/0.20, changed state to up


%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0.20, changed state to up


Router(config-subif)#encapsulation dot1Q 20

Router(config-subif)#ip add 192.168.20.1 255.255.255.0

Router(config-subif)#ex

Router(config)#int fa2/0

Router(config-if)#ip add 192.168.40.1 255.255.255.0

Router(config-if)#no sh


%LINK-5-CHANGED: Interface FastEthernet2/0, changed state to up


%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet2/0, changed state to up


Router(config-if)#ex

Router(config)#ex

%SYS-5-CONFIG_I: Configured from console by console



konfigurasi switch

 Switch>en

Switch#conf t

Enter configuration commands, one per line. End with CNTL/Z.

Switch(config)#vlan 10

Switch(config-if)#name vlan10

Switch(config)#vlan 20

Switch(config-if)#name vlan20

Switch(config-if)#ex

Switch(config)#int fa0/1

Switch(config-if)#switchport access vlan 10

% Access VLAN does not exist. Creating vlan 10

Switch(config-if)#ex

Switch(config)#int fa0/2

Switch(config-if)#switchport access vlan 10

Switch(config-if)#ex

Switch(config)#int fa0/3

Switch(config-if)#switchport access vlan 10

Switch(config-if)#ex

Switch(config)#int fa0/4

Switch(config-if)#switchport access vlan 10

Switch(config-if)#ex

Switch(config)#int fa0/5

Switch(config-if)#switchport access vlan 10

Switch(config-if)#ex

Switch(config)#int fa0/6

Switch(config-if)#switchport access vlan 10

Switch(config-if)#ex

Switch(config)#int fa0/7

Switch(config-if)#switchport access vlan 10

Switch(config-if)#ex

Switch(config)#int fa0/8

Switch(config-if)#switchport access vlan 10

Switch(config-if)#ex

Switch(config)#int fa0/10

Switch(config-if)#switchport access vlan 10

Switch(config-if)#ex

Switch(config)#int fa0/11

Switch(config-if)#switchport access vlan 10

Switch(config-if)#ex



Switch(config)#int fa0/12

Switch(config-if)#switchport access vlan 20

% Access VLAN does not exist. Creating vlan 20

Switch(config-if)#ex

Switch(config)#int fa0/13

Switch(config-if)#switchport access vlan 20

Switch(config-if)#ex

Switch(config)#int fa0/14

Switch(config-if)#switchport access vlan 20

Switch(config-if)#ex

Switch(config)#int fa0/15

Switch(config-if)#switchport access vlan 20

Switch(config-if)#ex

Switch(config)#int fa0/16

Switch(config-if)#switchport access vlan 20

Switch(config-if)#ex

Switch(config)#int fa0/17

Switch(config-if)#switchport access vlan 20

Switch(config-if)#ex

Switch(config)#int fa0/18

Switch(config-if)#switchport access vlan 20

Switch(config-if)#ex

Switch(config)#int fa0/19

Switch(config-if)#switchport access vlan 20

Switch(config-if)#ex

Switch(config)#int fa0/20

Switch(config-if)#switchport access vlan 20

Switch(config-if)#ex

Switch(config)#int fa0/21

Switch(config-if)#switchport access vlan 20

Switch(config-if)#ex

Switch(config)#int fa0/22

Switch(config-if)#switchport access vlan 20

Switch(config-if)#ex

Switch(config)#ex

Switch#

%SYS-5-CONFIG_I: Configured from console by console


Switch#conf t

Enter configuration commands, one per line. End with CNTL/Z.

Switch(config)#int fa0/24

Switch(config-if)#switchport mode trunk


Switch(config-if)#

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/24, changed state to down


%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/24, changed state to up


Switch(config-if)#no sh

Switch(config-if)#ex

Switch(config)#ex

Switch#

%SYS-5-CONFIG_I: Configured from console by console



konfigurasi WRT300N



1. klik wrt300n

2. masuk ke GUI bagian setup

    internet connetion type kalaian ganti ke static ip

    ip add            192.168.40.2

    subnet mask  255.255.255.0

    default getway 192.168.40.1

    kalaian scrol ke bawah lalu klik save



3. masuk ke config lalu wirless

    kalian centang bagian wpa2-psk jika ingin memasukan passwords

    kalain ganti nama  default jika ingin menganti nama wirless nya.



konfigurasi leptop agar terhubung ke wirless yaitu

klik leptop lalu matikan dulu setelah itu

buang bagian lan nya

jika di buang pasang pengantar wirless(biasanya ada di bawah yang bulet) lalu naylakan.

setelah sudah di nyalakan kalian masuk ke bagian :

    Desktop lalu

        klik  PC wirless setelah itu

            klik connect jika sudah

            refresh sampai nama wifinaya terdidek



tes dengan mengirim surat

cisco tes dengan cara mengirim surat



Buat Pendidikan Terkhir :
=IF(MID(B5;3;2)="SL";"SLTA";IF(MID(B5;3;2)="D3";"DIPLOMA3";IF(MID(B5;3;2)="S1";"STRATA1";)))
or
=IF(MID(B4;3;2)="SL";"SLTA";IF(MID(B4;3;2)="D3";"DIPLOMA3";IF(MID(B4;3;2)="S1";"STRATA1";)))

buat devisi kerja :
=IF(MID(B5;1;2)="GD";"Gudang";IF(MID(B5;1;2)="PU";"Purchasing";IF(MID(B5;1;2)="MK";"Marketing";IF(MID(B5;1;2)="KU";"Keuagan";IF(MID(B5;1;2)="ST";"Staff")))))
or
=IF(MID(B4;1;2)="GD";"Gudang";IF(MID(B4;1;2)="PU";"Purchasing";IF(MID(B4;1;2)="MK";"Marketing";IF(MID(B4;1;2)="KU";"Keuagan";IF(MID(B4;1;2)="ST";"Staff")))))

gaji pokok
=IF(E5="Gudang";"2000000";IF(E5="Purchasing";"2500000";IF(E5="Marketing";"3000000";IF(E5="Keuagan";"3500000";IF(E5="Staff";"4000000";)))))

tunjagan
=IF(D5="SLTA";"1000000";IF(D5="DIPLOMA3";"1750000";IF(D5="STRATA1";"2500000";)))

total gaji
=(F5+G5)
